UniGo 6005 is both a Laptimer and a Data Logger. It means that all data are stored in the Laptimer at up to 60 times per second. It makes it possible to transfer the results to a PC or MAC for further analyzing. The included analyze program will give you the complete overview together with the possibility to compare results between drivers, training sessions and heats.

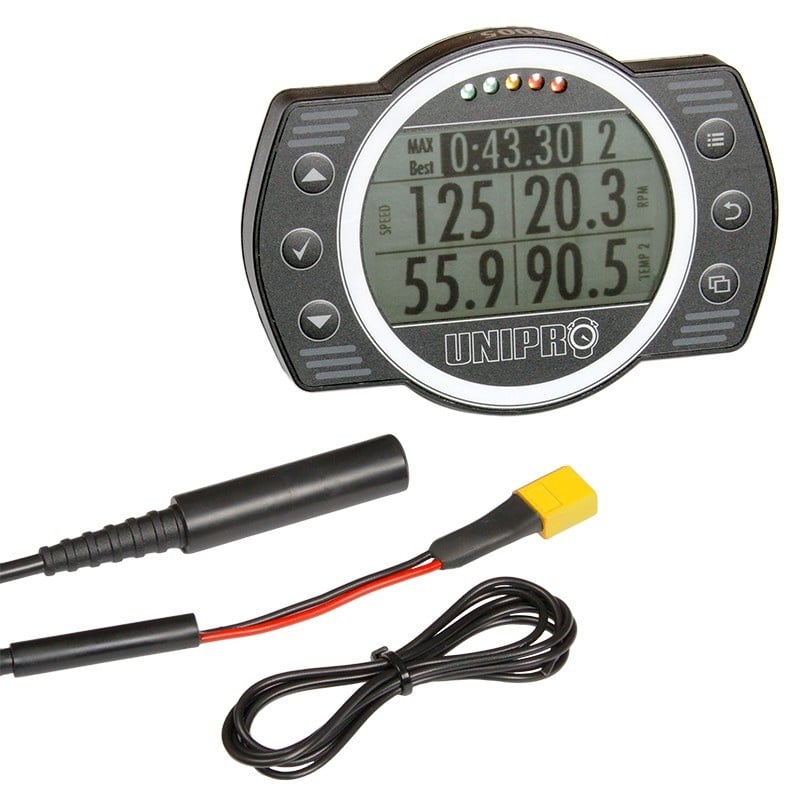

The kit contains the Laptimer with free choice of receiver (magnet, loop or IR), RPM wire, power cable and a battery holder for six AA batteries. It gives you the possibility to measure lap times and engine revolutions.
Â
Lap memory:Â Virtual unlimited
Log memory:Â Virtual unlimited
Channels logged:Â Lap time, position, RPM, 2 x temperature, speed, gear, ambient temperature, voltage. Logged at up to 60 Hz
Sensor inputs:Â RPM, 2 x temperature*, speed*, trigger, external power and expansion
GPS:Â Yes
Trigger:Â Magnet, infrared, active loop, GPS
Split times:Â Magnets, wheel sensor
Real-time-clock:Â Yes
Expandable:Â Yes
Display type:Â 256 x 160 pixels, 16 gray scales
Backlight:Â Yes
LED warnings:Â 5 high-brightness, fully programmable
Data upload:Â USB high-speed via optional USB cable or optional Unipro Flash key
Casing:Â Lightweight plastic
Waterproof:Â Yes
Dimensions:Â 131.5 x 94.0 x 18.0 mm (5.18" x 3.70" x 0.71")
* Shared connector: Optional cable splitter needed
